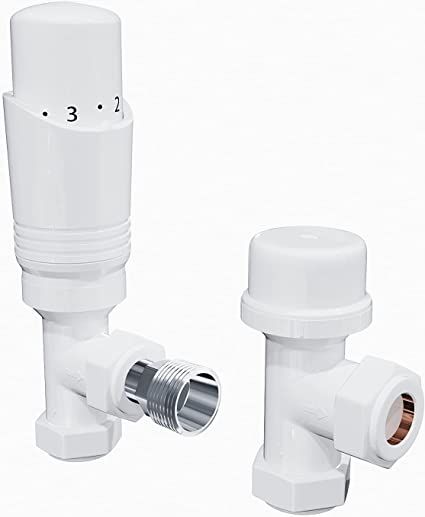

ELEGANT White Angled Thermostatic Radiator Valve Set TRV Radiator Valves
✅ Solid brass construction in white finish
✅ 1/2" BSP standard 15mm pipe connection
✅ Thermostatic Valve & Lockshield: TRV is connected to the flow; Lock shield valve is connected to the return
✅ Graduated scale from 0 to 5 corresponding to temperature ranges 7°C - 32°C with frost protect setting
✅ Can be mounted horizontally or vertically for central heating radiators / towel rail
ELEGANT White Angled Thermostatic Radiator Valve Set TRV Radiator Valves
Complete your new designer radiator or heated towel with this pair of Elegant thermostatic angled radiator valves. These modern valves are made from brass for superb durability and have a hard-wearing anthracite powder coated finish that matches with the Elegant range of anthracite designer radiators and heated towel rails, so you can create a look that’s stylish and coordinated.
◊ Product Features
Thermostatic Valve & Lockshield: TRV is connected to the flow; Lock shield valve is connected to the return
Graduated scale from 0 to 5 corresponding to temperature ranges 7°C - 32°C with frost protect setting as well
Quality and Safty:
White plated solid brass
Thermostatic head and reversible bi-directional body
Built in sensor with liquid element
Fully tested 10bar
Max pressure difference 0.8bar
Nominal flow rate 173kgs/h
Max flow temperature 120°C
Can be mounted horizontally or vertically
1/2" BSP standard 15mm compression inlet
Temperature Range:
*: 7°C
1: 11°C - 13°C
2: 15°C - 17°C
3: 19°C - 21°C
4: 23°C - 25°C
5: 27°C - 29°C
Package Includes:
1 x Thermostatic Radiator Valve (TRV)
1 x lock shield valve
| Colour | White |
|---|
