Choosing the right shower enclosure for a 1200x800 tray is one of the most important decisions in any UK bathroom renovation. Get it wrong, and you face leaks, misaligned profiles, or a full re-purchase. The 1200mm width by 800mm depth rectangular footprint is hugely popular across British homes because it offers spacious showering without dominating a small bathroom. However, compatibility between tray and enclosure goes far beyond matching the outer dimensions.

This practical guide covers every detail – from profile height matching to waste position, door swing clearance to glass thickness – so you can buy with confidence. Based on the most common installation challenges found in UK search results and real-world plumbing forums, this checklist will help you avoid costly mistakes.

What is a 1200x800 Shower Enclosure?

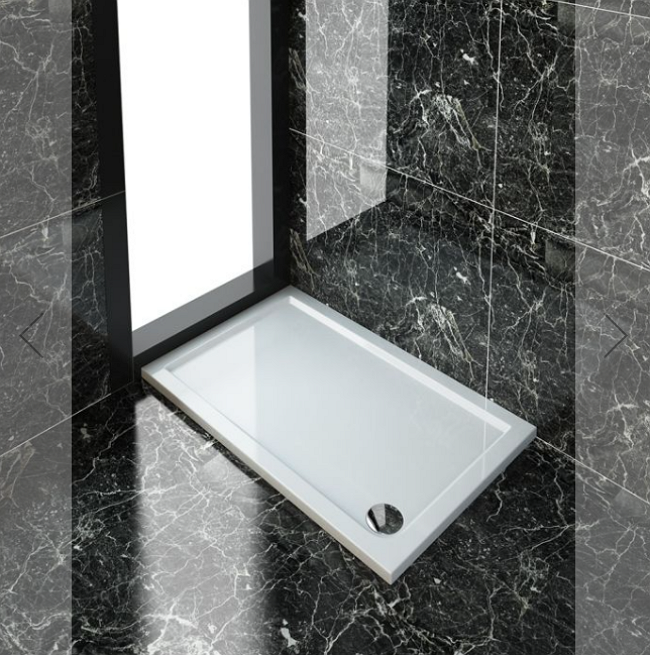

A 1200x800 shower enclosure is designed to sit on a tray that measures 1200 millimetres along the longer wall (usually the back wall) and 800 millimetres in the projection from the wall. This rectangular shape works beautifully in both medium-sized family bathrooms and compact ensuites. The longer side allows comfortable elbow room, while the 800mm depth keeps the shower from protruding too far into the room. You will encounter two main configurations: a single fixed panel with a hinged door, or an offset quadrant enclosure for corner installations.

Why Compatibility Between Tray and Enclosure Matters More Than You Think

Many homeowners assume any “1200x800” enclosure will fit any “1200x800” tray – but that is rarely true. Tray heights vary from 25mm ultra-low profiles to 75mm raised units. Waste positions differ. Wall profiles have adjustment limits. Even the handedness of a door (left or right opening) can render an entire enclosure unusable. A mismatch leads to water pooling outside the shower, difficult sealing, or the enclosure not reaching the tray bed. In worst cases, you cannot return custom-cut or assembled enclosures.

Overview of Your 1200x800 Shower Enclosure Compatibility Checklist

This guide covers six critical areas: footprint accuracy, profile height matching, waste position, handedness and configuration, glass thickness, and riser kits for solid floors. Use the checklist at the end before clicking “buy.”

How to Measure Your 1200x800 Shower Tray Installation Space

Start by measuring the finished wall surfaces – not the bare studs or plasterboard. Use a spirit level and measure at the top, middle, and bottom of the intended tray height (usually 150–200mm above floor). Record the smallest width and depth. Walls in UK homes are rarely perfectly plumb, especially in older properties. If the gap varies by more than 10mm, you will need an enclosure with generous wall profile adjustment (typically 20–25mm). Ignoring this forces installers to pack out walls or cut tiles unevenly.

Standard UK Shower Enclosure Height Options (1850mm, 1900mm, 1950mm)

Most enclosure panels come in 1850mm, 1900mm, or 1950mm heights. Add your tray’s height to the panel height to calculate total clearance to the ceiling. For a low profile tray of 25mm plus a 1900mm panel, the top will sit at 1925mm above the floor – fine for a standard 2100mm ceiling. For a raised tray of 75mm with a 1950mm panel, total height reaches 2025mm, which may brush against bulkheads or ceiling slopes. Always check.

Accounting for Wall Adjustment Tolerance (20–25mm Profiles)

High-quality UK enclosures from brands like Merlyn, Kudos, or Aqualux include adjustable wall profiles that slide 20–25mm left or right. This tolerance compensates for out-of-plumb walls. Never buy a zero-tolerance frameless enclosure unless your walls are perfectly true.

1200x800 Rectangular vs. 1200x800 Offset Quadrant – What’s the Difference?

A rectangular shower enclosure uses one flat screen and a door on the 800mm side – ideal for alcove installations. An offset quadrant (or curved) enclosure uses two glass panels meeting at a radius, saving space in corners. The tray shape must match: rectangular trays need rectangular screens; offset quadrant trays (often called “1200x800 offset quadrant”) need corresponding curved or angled enclosures. Mixing them is impossible.

The Perfect Fit – A Detailed Compatibility Checklist

This is the heart of your shower enclosure purchase. Do not skip any of the six checks below. Each one has caused real installation failures in British bathrooms, from leaked water damaging floorboards to enclosures that simply would not fit.

 Profile Height Matching – The Overlooked Detail in Shower Enclosure Installation

This is the single most common compatibility failure. Shower trays come in different heights measured from the floor to the top of the tray’s outer rim (the upstand). Your shower enclosure sits on top of that rim. If the enclosure’s bottom seal profile is designed for a 40mm tray but you have a 25mm low profile tray, the glass may not reach the tray bed, leaving a gap.

  • Low Profile Tray (25–40mm) Compatibility: Ultra-low trays like the Mira Flight Level (25mm) or 40mm versions work beautifully with frameless walk-in enclosures. Always confirm the enclosure’s literature states “suitable for low profile trays” or includes an adjustable bottom seal with a 15–20mm range.

  • Standard Height Tray (40–50mm) Compatibility: The most common in the UK – 40mm Mira Flight or 45mm Hydrolux trays. Nearly all framed and semi-framed enclosures are designed for this range. Check the product datasheet for “tray height compatibility.”

  • Raised Tray (75mm+) Compatibility: Used to hide pipework or improve drainage on solid floors. Raised trays require enclosures with deeper bottom profiles or an extended seal kit. Many standard enclosures will not seal properly.

Waste Position – The Plumbing Non-Negotiable

Your 1200x800 shower tray has a waste hole either in the centre, off-centre, or at one end. For a 1200mm long tray, the waste should ideally be at the shower-head end (the “wet end”) to encourage water flow. However, underfloor joists and solid concrete floors often dictate waste placement. Before buying the tray, lift floorboards or use a stud finder to locate joists. A central waste may land directly on a joist, forcing you to use a riser kit. For solid ground floors without a subfloor void, a riser kit is mandatory because the waste pipe must run horizontally below the tray.

Configuration & Handedness – Left or Right?

Offset quadrant and pivot door enclosures are handed – left-hand (LH) opening or right-hand (RH) opening. Stand facing the 800mm front side. If the door hinges on your left, you need LH. If on the right, RH. Some enclosures are partly reversible (e.g., bi-fold doors), but always verify. Buying the wrong handedness means the door may hit a toilet or sink.

Glass Thickness & Framed/Frameless Options

  • Glass thickness (6mm vs 8mm vs 10mm): 6mm is economical but can flex and feel less substantial. 8mm is the sweet spot for rigidity and price, and is required for most frameless designs. 10mm is rare, heavy, and premium – usually for large walk-in panels. All must be toughened safety glass (BS EN 12150).

  • Framed: Aluminium profiles surround the glass – affordable, sturdy, but harder to clean.

  • Semi-framed: Glass edges are exposed except for vertical wall profiles – modern look.

  • Frameless: No metal frames; thick glass (min 8mm) held by hinges and clips. Most stylish but demands perfect wall alignment.

Riser Kits & Legs – When Flat Installation Isn’t an Option on a Solid Floor

A riser kit is a low-profile plastic or metal frame that sits under the tray, creating a 50–100mm void for waste pipes. Essential for solid concrete floors where you cannot chase pipes into the ground. Riser kits also allow you to level the tray perfectly. Without one, many solid floor installations are impossible.

Before You Buy – Installation & Siting Considerations

Before you finalise your order, take a step back from the product specifications and look at the real-world space where this shower enclosure will live. Many compatibility issues arise not from the tray and enclosure themselves, but from the bathroom’s walls, floor, and layout. This section covers the often-overlooked installation realities that can make or break your 1200x800 shower project.

Door Swing Clearance for Your Shower Enclosure

Hinged or pivot doors swing outward. For a 1200x800 shower enclosure, the door is on the 800mm front. If that door swings open into the bathroom, you need at least 800mm of clear floor space – plus 100mm for handles. Many UK bathrooms lack this space. The solution: a sliding door (runs on a track) or a bi-fold door (folds inwards). Sliding doors are ideal for narrow ensuites.

What is a Shower Enclosure Upstand?

The upstand is the raised inner rim of the tray – usually 15–30mm high – designed to stop water from running over the edge and onto the bathroom floor. The enclosure glass sits just inside or on top of the upstand. Check that the height of the upstand does not create a trip hazard, especially for less mobile users. Some modern trays have a low upstand (under 10mm) for step-free access.

The Ultimate 1200x800 Shower Enclosure Compatibility Checklist

Before you click “buy” or hand over your card at the bathroom showroom, run through this expanded checklist. Each item has caused real compatibility failures in UK installations. Tick every box.

  • 1200x800 footprint matches your space
  • Profile height of enclosure seals correctly onto your tray (25mm, 40mm, 50mm, 75mm+)
  • Waste position aligns with floor joists or can use a riser kit
  •  Handedness (LH/RH) is correct for your room layout
  • Door swing clearance: hinged, sliding, or bi-fold chosen appropriately
  • Glass thickness: 6mm (budget) or 8mm (preferred)

Frequently Asked Questions about 1200x800 Shower Tray and Enclosure

Do I need a riser kit for a 1200x800 shower tray on a solid floor?

Yes, almost always. Solid concrete floors cannot accommodate a standard 40mm waste trap unless you build a false floor or break up the concrete. A riser kit creates the necessary void beneath the tray for the waste pipe and trap. Without it, water cannot drain.

Can I use any shower enclosure with a low profile tray?

No. Low profile trays (25mm) require enclosures specifically designed with longer bottom seals or adjustable profiles. Standard enclosures for 40mm trays will leave a 15mm gap. Always confirm “low profile compatible” in the product description.

What is the water flow rate for a 1200x800 shower tray waste?

Most high-flow wastes achieve 25–35 litres per minute, which is adequate for a typical 12–15 L/min shower head. For larger rainfall or body jets, look for a “high flow” waste rated at 40+ L/min.

Does a shower enclosure need to sit flush on the tray?

No – the enclosure sits on the outer rim/upstand. The glass does not touch the tray bed. However, the door’s sweep seal must make continuous contact with the tray bed to prevent leaks. Check the seal length and adjustability.

Can I install a shower enclosure myself or need a professional?

A competent DIYer with basic tiling and sealing skills can install a framed or semi-framed enclosure. Frameless glass panels are heavy and require precise drilling into tiles – a professional is strongly recommended to avoid cracked tiles or water damage.

Conclusion: Summary & Final Tips

Buying a shower enclosure for your 1200x800 tray is straightforward once you understand the hidden variables. The two most overlooked details are profile height matching and waste position. Always measure your finished wall space three times, not twice. Choose the same brand for tray and enclosure wherever possible – that guarantees compatibility. And never assume “standard” dimensions mean universal fit.

For a stress-free installation, print this checklist and take it to your local bathroom showroom. Ask to see the enclosure’s bottom profile and confirm it works with your specific tray height. A few extra minutes of checking saves hours of returns and frustration. If you’re ready to see what’s available for your space, you can explore a wide range of 1200x800 shower enclosures and trays at Elegant Showers. They offer everything from practical sliding enclosures to stylish stone-resin trays, all with free delivery across the UK mainland to make your project simpler. For more ideas and solutions tailored to your bathroom, be sure to visit www.elegantshowers.co.uk and browse their collections.
