Shower Enclosure Footprint vs Door Swing Clearance: What UK Buyers Often Miss

When you're planning a new shower enclosure, it's natural to focus on the tray size. You measure your alcove, check the width and depth, and order a 900 × 900mm enclosure with confidence. Then it arrives, and the door won't open properly because it hits the toilet, the basin, or the bathroom door.

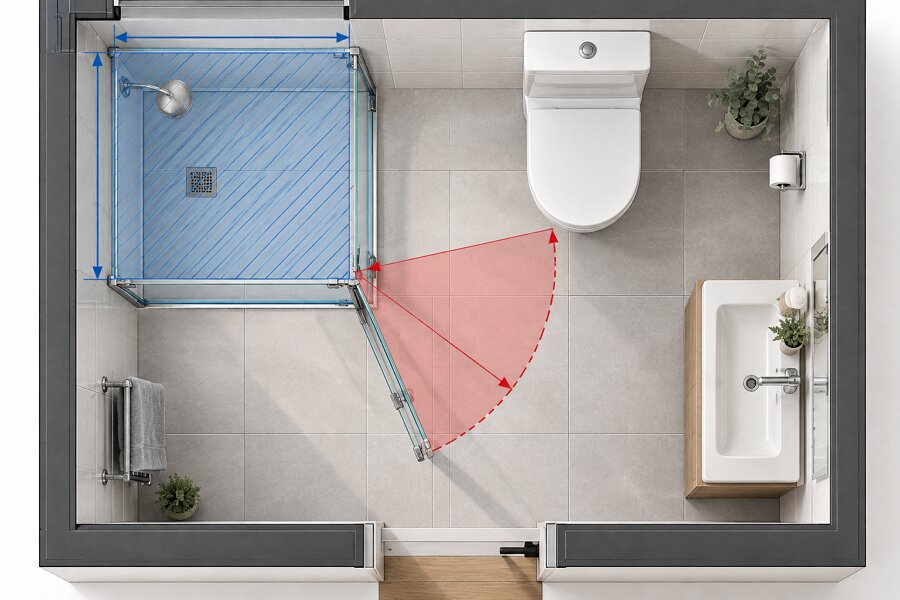

This is the most common — and most expensive — mistake UK buyers make. The shower enclosure footprint (the tray or base dimensions) tells you where the enclosure sits. The door swing clearance tells you whether you can actually get in and out of it. Both measurements matter, but only one is usually printed on the box.

This guide explains the difference between shower enclosure footprint and door swing clearance, what UK building regulations and best-practice standards say, how each shower door type affects clearance, and how to measure your bathroom so you get it right the first time.

What Is a Shower Enclosure Footprint?

The shower enclosure footprint is the external base dimension of the enclosure or tray, expressed as width × depth in millimetres. It is the amount of floor space the enclosure occupies. For a rectangular enclosure, this might be 1200 × 800mm. For a quadrant enclosure, it might be 900 × 900mm with a curved front.

The footprint is the starting point for any shower installation. It determines whether the enclosure physically fits into your chosen space — an alcove, a corner, or a recess.

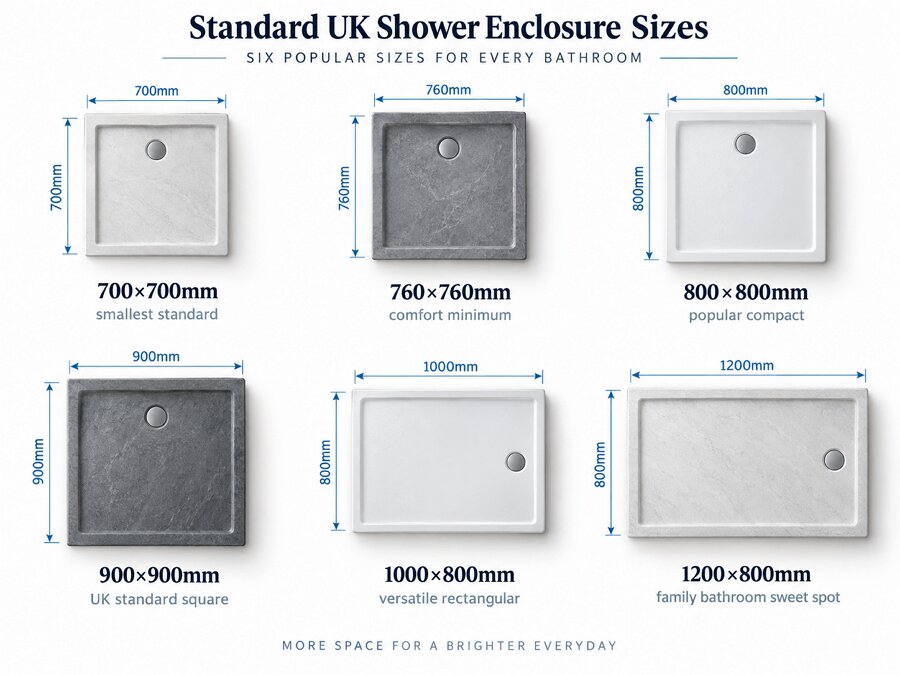

Standard UK Shower Enclosure Footprint Sizes

UK retailers and manufacturers work to a well-established range of standard tray sizes:

• 700 × 700mm — the smallest standard footprint; only suitable for very compact spaces

• 760 × 760mm — the comfort minimum for most adults

• 800 × 800mm — a popular compact square

• 900 × 900mm — the UK standard square enclosure

• 1000 × 800mm — a versatile rectangular option

• 1200 × 800mm — widely considered the sweet spot for family bathrooms

• 1400 × 900mm — a generous rectangular enclosure for larger bathrooms

Quadrant enclosures follow their own sizing conventions: 800 × 800mm, 900 × 900mm, and 1000 × 1000mm are common, along with offset quadrants such as 1000 × 800mm and 1200 × 900mm.

Footprint vs Tray Size: Are They the Same?

In most cases, the enclosure footprint and the tray size are the same measurement. However, some enclosures have adjustable wall profiles that add 20–40mm to the overall footprint, and some trays have upstands that reduce the internal showering area. Always check the manufacturer's technical drawing for the finished footprint dimension, not just the nominal tray size.

Critically, the footprint only tells you where the enclosure sits. It does not tell you how you get into it. That is the job of door swing clearance.

What Is Door Swing Clearance?

Door swing clearance is the unobstructed floor area required for the shower door to open, close, and allow safe entry and exit. It is the space the door sweeps through as it moves — and it is entirely separate from the enclosure footprint.

A shower enclosure can fit perfectly into your bathroom and still be unusable if the door cannot open fully. This is why swing clearance must be measured and planned for before you buy.

Why 700mm Is the UK Benchmark (But Not the Full Story)

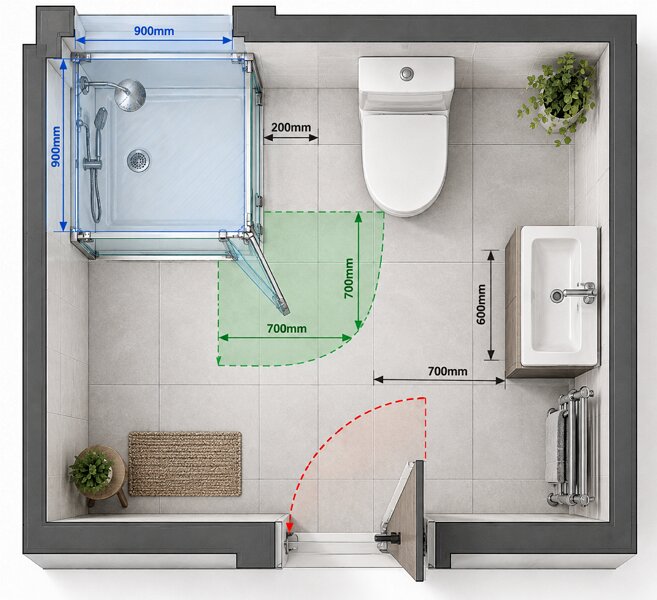

UK guidance — including BS 6465-2:2017 and the principles behind Approved Document M — recommends a minimum 700mm clear space in front of a shower opening. This is the activity space needed for a person to stand, step in, and step out safely.

However, 700mm is the minimum for standing and entry. It is not necessarily enough for a hinged or pivot door to open. A 760mm hinged door needs approximately 760mm of swing clearance, plus additional space for the handle projection. In practice, a 760mm door can require around 900mm of clear floor space to open fully without obstruction.

The Difference Between Entry Width and Swing Clearance

This is where many buyers get confused. Entry width is the gap you step through when the door is open. On compact enclosures, this might be only 400–550mm. Swing clearance is the floor space the door sweeps through as it opens.

A door with a 430mm entry width may still require 700mm or more of swing clearance. These are two different measurements, and both matter. A narrow entry width can make the shower feel cramped, while insufficient swing clearance can make it impossible to open the door at all.

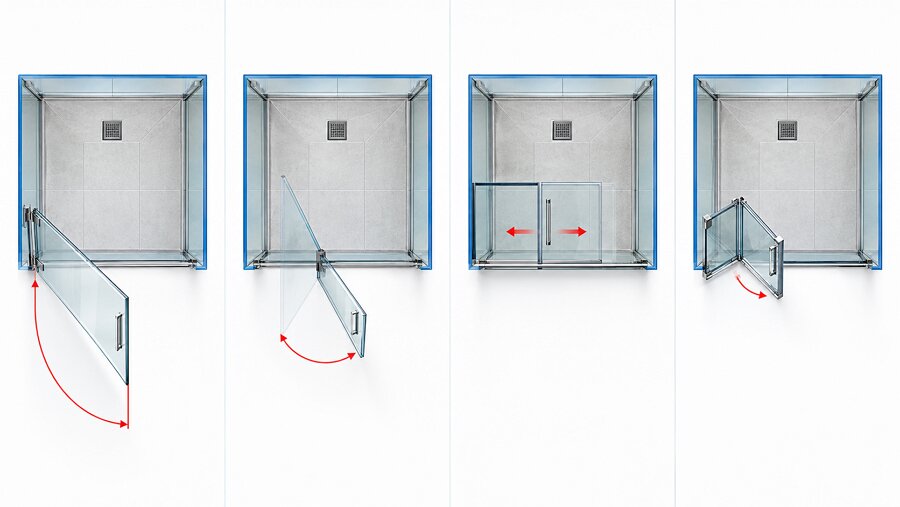

Hinged vs Pivot vs Sliding vs Bi-Fold Shower Door Clearance

Different shower door mechanisms have very different space requirements. Choosing the right mechanism can often solve a difficult bathroom layout without reducing the shower tray size.

Hinged Shower Door Clearance

A conventional hinged shower door rotates from a hinge close to one edge of the glass panel.

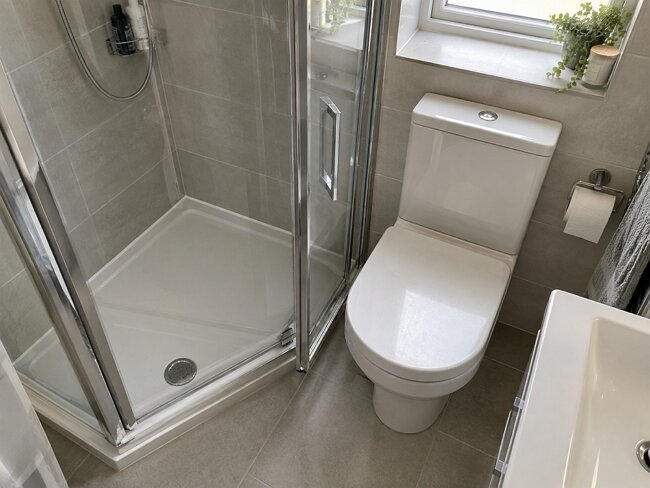

Because much of the door travels outside the shower enclosure, a hinged door can require a substantial clear area in front of it. That makes hinged shower doors attractive in larger bathrooms but potentially awkward where a WC or basin sits close to the enclosure.

They can, however, provide generous access when correctly specified.

Check the door handing as well. A reversible model may allow you to position the opening away from nearby sanitaryware.

Pivot Shower Door Clearance

A pivot shower door rotates around a pivot point positioned away from the outer edge.

As it opens, one section of the panel may move into the shower while the other projects into the bathroom. This can reduce the external swing compared with some traditional hinged doors.

It does not eliminate clearance requirements altogether.

Always check the manufacturer's panel swing, outside projection and clear opening dimensions, particularly when the shower is next to a toilet or vanity.

Sliding Shower Door Clearance

A sliding shower door is one of the most practical options for a small UK bathroom because the panels move laterally rather than swinging across the floor.

There is no conventional outward door arc, making sliding enclosures particularly useful when sanitaryware is close to the shower.

The trade-off is entrance width. Because the moving panel normally overlaps another panel, the clear opening may be considerably narrower than the overall enclosure width.

Bi-Fold and Infold Shower Door Clearance

A bi-fold shower door folds as it opens, dramatically reducing how far the glass projects into the bathroom.

Infold designs move primarily into the showering area.

Both mechanisms can work well in compact en-suites where there is not enough space for a full outward-opening door. You should still check the folded-panel position and clear entrance aperture rather than assuming every folding door provides the same access.

Quadrant and Walk-In Shower Clearance

Quadrant shower enclosures commonly use sliding doors, combining a curved footprint with minimal external door movement. This makes them popular where central floor space is restricted.

A walk-in shower removes the door swing issue entirely because the entrance is permanently open. However, screen length, splash control, shower position and comfortable access then become more important.

How to Measure Shower Enclosure Footprint and Door Swing Clearance

Measure the bathroom as a finished space wherever possible. Tiles, shower wall panels and other finishes can reduce the dimensions you measured during the bare-wall stage.

For a recess shower door, measure the opening at more than one height. Walls are not always perfectly vertical, particularly in older UK properties.

Next, obtain the manufacturer's technical drawing and confirm the adjustment range, clear opening and door movement.

A simple physical mock-up can reveal problems that are difficult to spot on a floor plan.

Use masking tape to mark the proposed shower tray or shower enclosure footprint on the floor. Then mark the hinge or pivot point and reproduce the door's maximum projection using the dimensions in the product drawing. Remember to allow for projecting handles where relevant.

Before ordering, check these seven measurements:

1. Finished enclosure width.
2. Finished enclosure depth.
3. Manufacturer's adjustment range.
4. Clear shower entrance width.
5. Maximum external door swing or projection.
6. Internal door movement.
7. Distance to the nearest WC, basin, vanity, radiator or other obstruction.

If any one of these fails, the enclosure may be technically installable but unpleasant or impossible to use.

Standard UK Shower Enclosure Sizes vs Actual Door Opening

Nominal enclosure size alone tells you surprisingly little about the space available for entry.

A 760 × 760 mm enclosure can work effectively in a compact room, but entrance aperture becomes particularly important at this size.

An 800 × 800 mm or 900 × 900 mm enclosure generally offers more showering room, although its suitability still depends heavily on the door type.

Rectangular 1000 × 800 mm and 1200 × 800 mm shower enclosures offer additional internal space, but a large hinged door positioned on the long side could still create a difficult external swing.

Most importantly, two shower doors advertised at the same nominal width can provide different entrance dimensions.

For example, Lakes currently lists its 800 mm pivot model with a 500 mm opening and its 900 mm version with a 550 mm opening. The published fitting ranges also differ from the nominal product widths.

Treat this as a planning comparison rather than a dimensional specification. The technical drawing for the exact product should always take priority.

Shower Enclosure Footprint vs Door Swing Clearance: Final UK Buyer Checklist

The two measurements that determine whether your shower works are the footprint and the door swing clearance. Footprint alone is not enough — door swing determines usability. A shower enclosure can fit your alcove perfectly and still be unusable if the door cannot open fully, if the entry width is too narrow, or if the swing arc collides with your toilet, basin, or bathroom door.

For tight UK bathrooms, en-suites, and cloakrooms, choose bi-fold or sliding doors to eliminate external swing requirements. For larger bathrooms with plenty of floor space, hinged and pivot doors offer generous entry but need more clearance. Quadrant enclosures are ideal for corners, and walk-in showers or wet rooms remove the door swing issue entirely — provided the floor is properly tanked and drainage is correctly planned.

Final checklist:

• Measure finished dimensions, including tiles and adhesive

• Mark the footprint and swing arc on the floor before buying

• Allow a 200mm gap to adjacent fixtures such as the WC or basin

• Provide 700mm+ of clear entry space, and more for hinged or pivot doors

• Check the entry width, handle projection, and tray upstand

• Match the door type to your available clearance

• Confirm Part G, Part M, and BS 6465-2:2017 requirements where applicable
